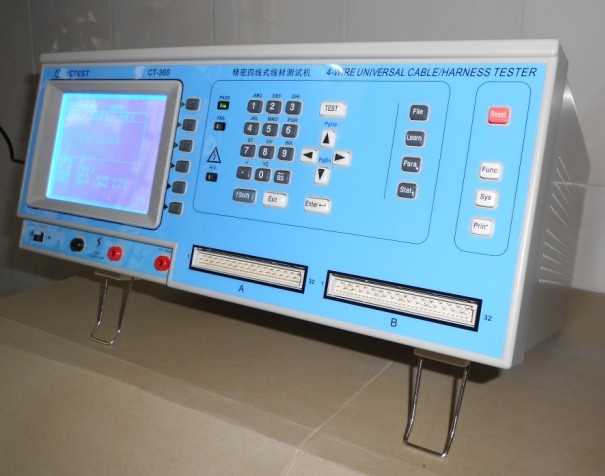

精密四線式線材綜合測試儀CT-360


特點說明：
電容最大可測至1000uF		操做設定更加簡單化
導通電阻可單獨分組設定		短斷路判定值最小200Ω
單邊靈敏度可單獨分組設定		可測試發光二極體參數值
提供先進四線式量測		先進的點測導通測試功能
測試項目：
項目	符號		量測范圍
斷/短路	O/S		200Ω~50KΩ
瞬間短斷路測試			200Ω~50KΩ
斷短路端點判斷
導通電阻	COND		1mΩ~ 500.0Ω
Intermittent Cond.			1mΩ~ 50.0Ω
電阻測試	R		0.01Ω~ 10MΩ
電容測試	C		10pF~1000uF
二極體測試	D		0-7V
絕緣電阻	IR		0.1MΩ~1.5GΩ
高壓測試			5mA

精密四線式線材測試機CT-360．技術規格
進階功能測試掃描模式	精密內四線量測；可程序化連續測試自動找點；自動診斷自我校正歸零；自動/短路掃瞄可切換
量測訊號源額定輸出絕緣測試	5Vdc 50~1500Vdc, 50~1000Vac 50Vdc分辨率 ±1%準確度
顯示/聲響裝置	320×240分辨率圖形液晶顯示 Pass/Fail LED紅綠指示燈/畫面顯示/聲響
量測接點	64獨立量測接點 128獨立量測接點(Optional) 高壓校正正負端輸出自動找點端子系統/快速/編輯/功能按鍵群組
控制面版界面	系統/快速/編輯/功能按鍵群組 RS-232通信連接埠打印機端口遠程控制埠
記憶裝置	閃存可擴充至1M

測量時間 TEST TIME
斷/短路 Open/short	快速(4ms/次/64點),慢速(8ms/次/64點)
導通電阻 Cond	快速55次/秒,中速45次/秒,慢速30次/秒
導通電阻 Cond	0.2s/32net(標準)參考
絕緣電阻 Insulation resistance	一對其它3.6s/64net(0.01s)
	二分快速0.4s/64net(0.01s)
	0.01秒～60秒可選擇設定
交流高壓 AC High Voltage	一對其它9.5s/64net(0.01s)
	二分快速0.9s/64net(0.01s)
	0.01秒～60秒可選擇設定
瞬間/高速短斷路 INT Time	0秒～99秒設0秒表示無限時間

4-WIRE UNIVERSAL CABLE TESTER/HARNESS TESTER CT-360

Details：

Max. DC1500V AC1000V Test Voltage;
Wider test range of on resistance, 0.01Ω- 500Ω;
Max. 256 test points, able to make cable single-sided test, accurate in judging short/open circuit;
Provide instant short/open circuit/continuity test;
Scan and find points automatically, and compile data artificially and intelligently;
320*240 dot matrix LCD, visual and generous;
Integrate linear test and safety test, and able to complete programmable continuous test and test lighting-emitting diode parameter;
PLC automatic control/barcode printer connection.

Test Function	Short circuit, open circuit, continuity, insulativity, instant short circuit, instant open circuit, single-end test, multi-section test, sequential test (point test), reverse cable test (dislocation), short circuit/open circuit port test, AC high-voltage leakage current test, DC high-voltage insulation resistance test
Short/Open Circuit	1K~50K Ω
On Resistance	0.001Ω~500Ω sectional setting
Insulation Resistance	1M Ω ~1000M Ω sectional setting
AC Leakage Current	0.01mA~5mA
DC Leakage Current	0.1uA~5mA
Resistance	0.1 Ω ~1M Ω
Capacitance	1pF~1uF
Diode	0.0V~7.0V
Instant Short/Open Circuit	1~50K Ω sectional setting
Low Voltage Measurement Signal	5.0VDC, ± 5%
DC High Voltage	5VDC~1500VDC
AC Withstand Voltage	100VAC~1000VAC
High Voltage Duration	0.01~60 secs.
Display Interface	320*240 dot matrix display
Warning Tone	Good/bad warning tone/LED display
Test Port	64PIN connector (connectable with flat cable, header)
Reading Mode	Self-learning/manual edition
Memory	1024KB SRAM, memorize 60 units of data
Interface	RS-232, printer, remoter
Power Supply/Environment	220VAC 50~60HZ temperature: 15~35 ℃ , humidity: ≦ 75%
Volume/Weight	425(W) * 360(D) * 190(H) about 14KG
